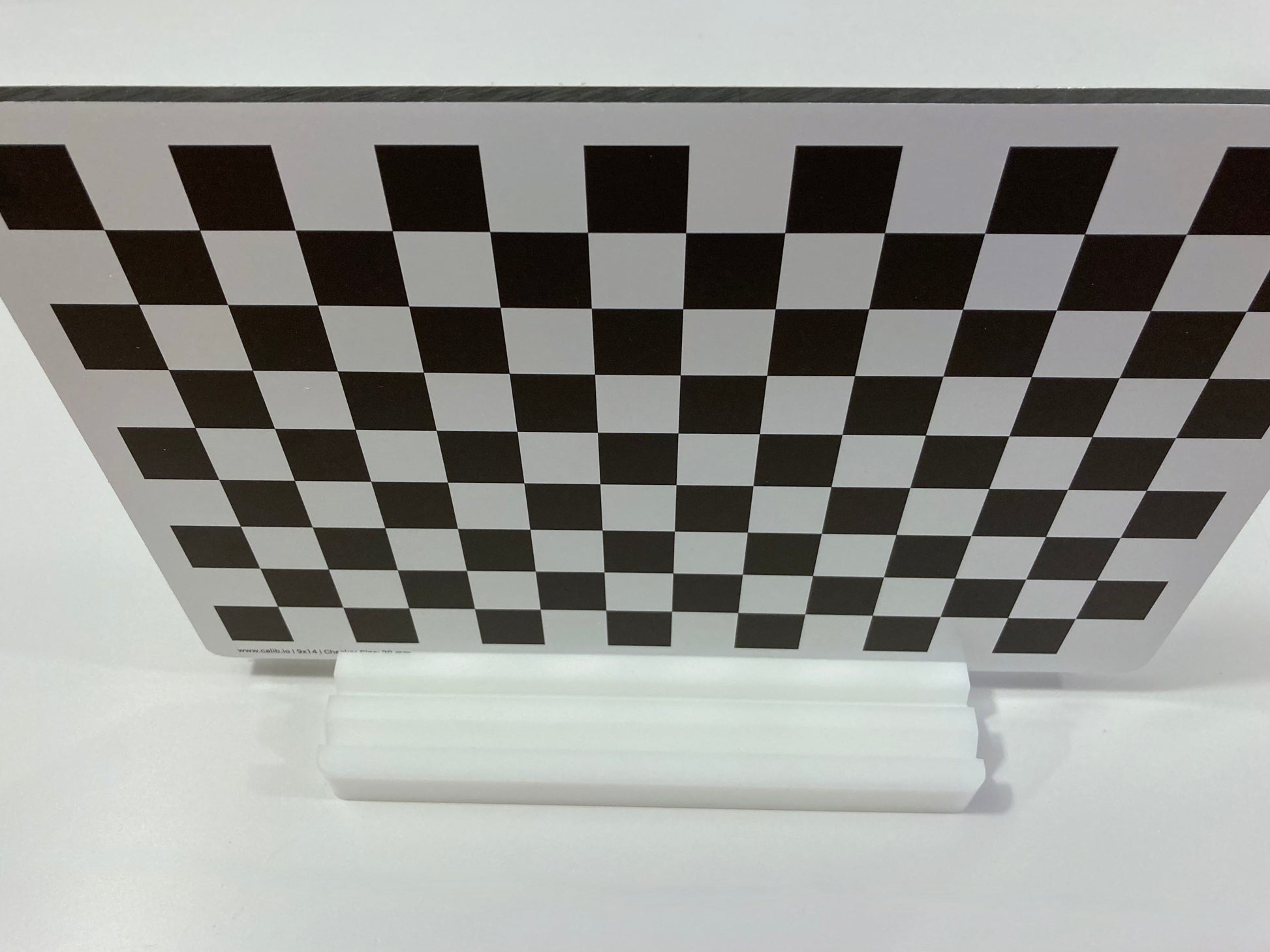

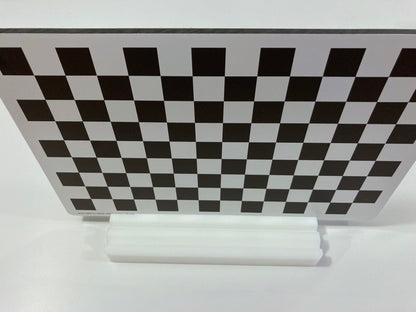

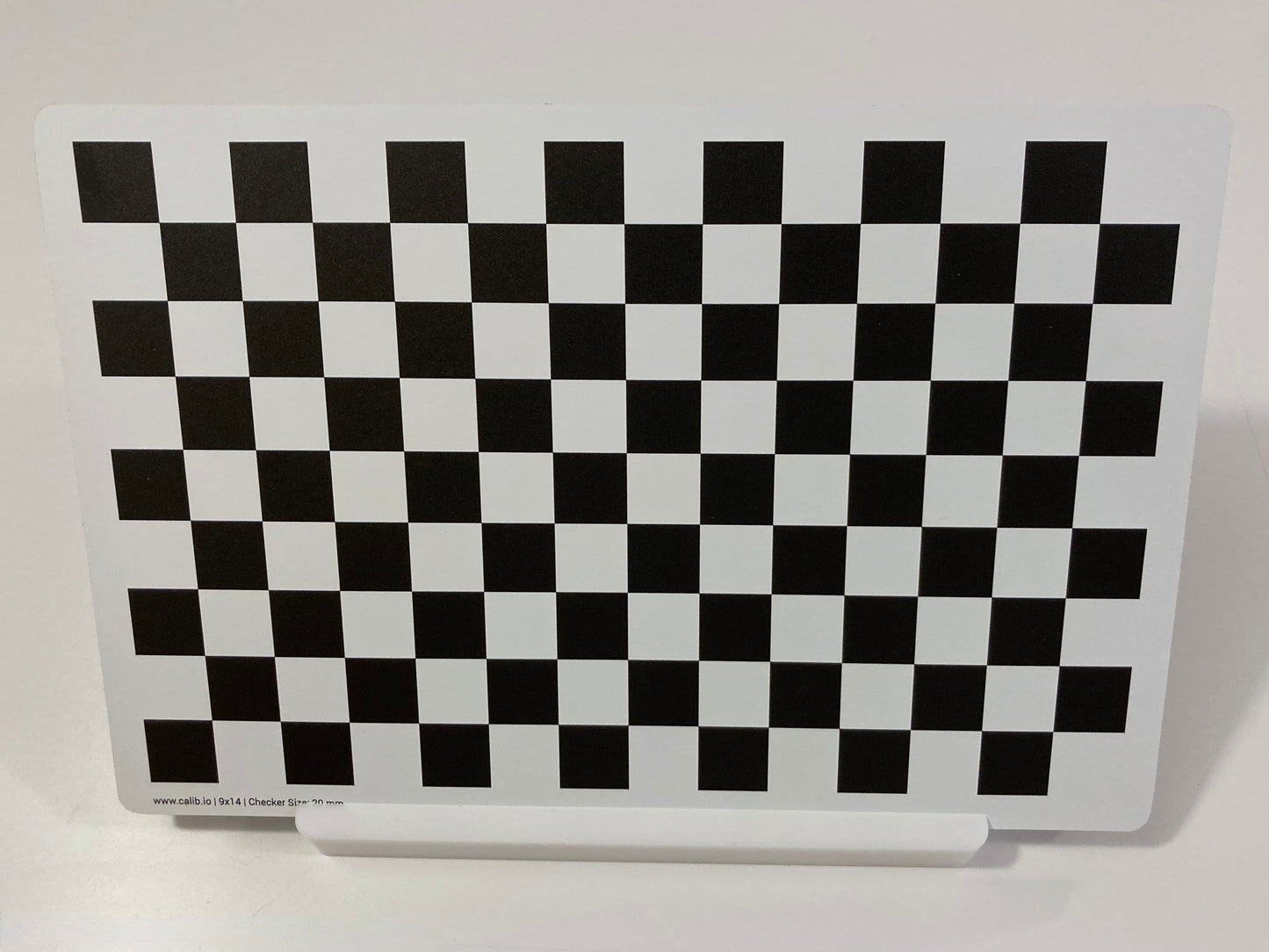

The target stand is ideal for capturing high-quality calibration data sets and designed for various board sizes. Rigid, repeatable positioning of calibration targets at different angles is key to achieving accuracy in calibration and the target stand was designed with those aspects in mind.

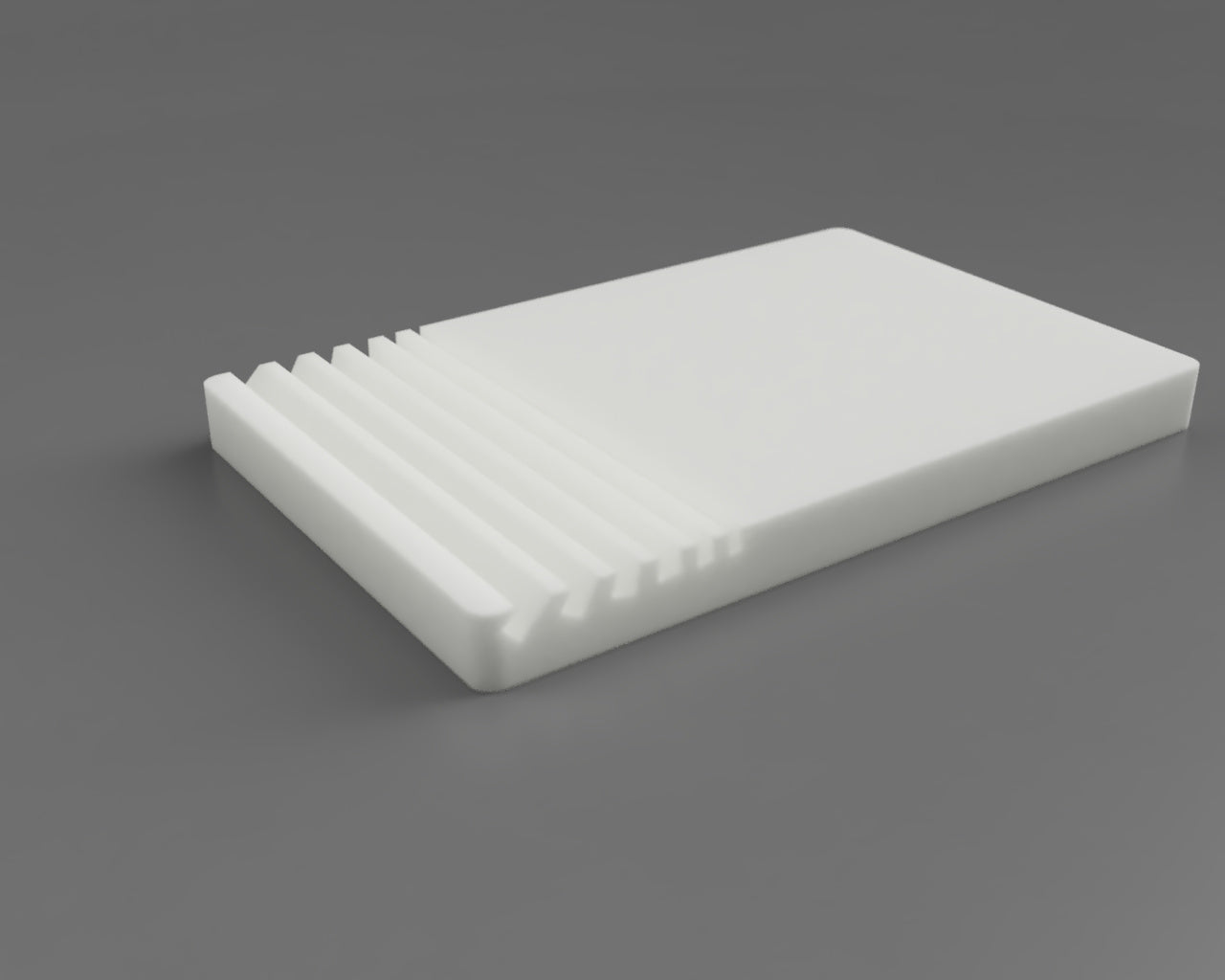

The stand is CNC machined from engineering grade POM/Delrin which features high density and strength while being soft enough to not mar the patterned surface of any calibration plate. The unused area of the stand could easily be drilled and tapped for user-specific mounting.
We recommend the stand for table or floor based calibration with targets of up to 800 x 600 mm and 3-6 mm in thickness.
| Material |
POM/Delrin (matte white) |
| Weight |
1.2kg |
| Dimensions |
160 x 250 x 20 mm |
| Groove angles |
45° / 60° / 75° / 90 ° / 90 ° / 90°
|
| Groove widths |
6.5mm / 4.5mm / 3.5mm |
| Max. plate dimensions |
800 x 600 mm |
