Regular price €89,00 Sale

Aluminium composite targets

Our larger sized calibration targets are made from aluminium/LDPE composite sheets which offers excellent flatness and stiffness, while being lightweight. Additionally, the composite material offers good thermal stability and corrosion resistance.

The patterns are transferred to the composite material using a specialised precision direct UV (Ultra-Violet) printing process resulting in a durable matte finish. Through extensive testing, we have found this process to be ideal for machine vision applications, where both accuracy, good optical performance and physical robustness are of utmost importance.

To mount these targets on tripod, frames or fixtures, see Mounting Fixture.

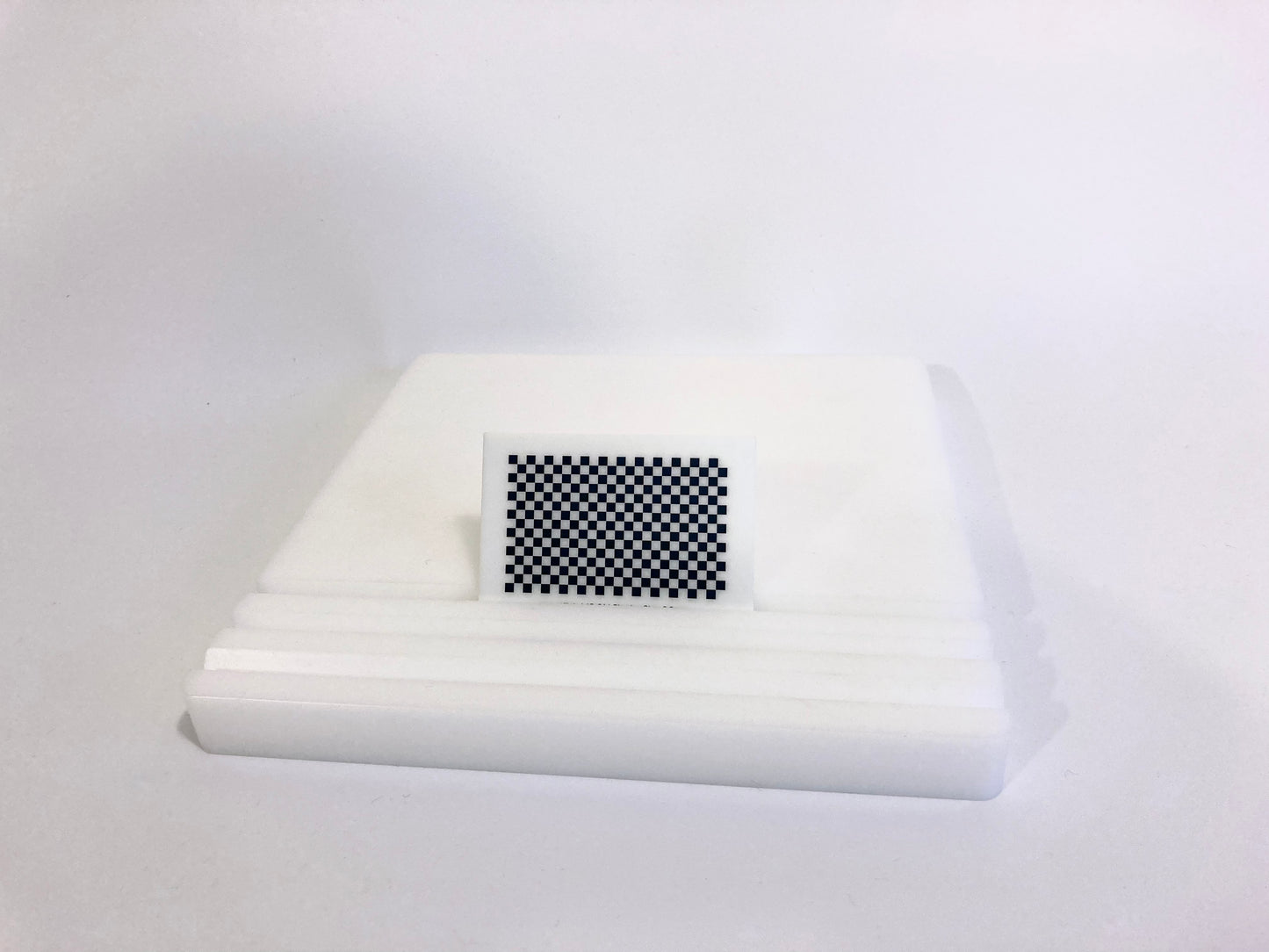

Ceramic targets

For ultimate absolute accuracy requirements and smaller FOVs, we offer ceramic targets. These are extremely flat, have close no to thermal expansion, and are manufactured on semi-conductor clean-room lithography lines.

In order to provide good, matte contrast without specular highlights, we use a specially coated blue chrome coating on a white alumina ceramic substrate. Feature-to-feature dimensional accuracy is better than 2μm.

Please note: we are also able to manufacture ceramic calibration targets with other patterns or designs at dimensions up to 400x400mm. NRE costs apply. Please submit a quote request if interested.



Patterns

We offer two pattern options, Fine and Coarse, which have been specifically designed to work optimally with high (Fine) and low (Coarse) resolution cameras. The following tables illustrate the available options:

Fine (Aluminium composite)

Plate Size [mm] Checker Width [mm] Rows x Columns

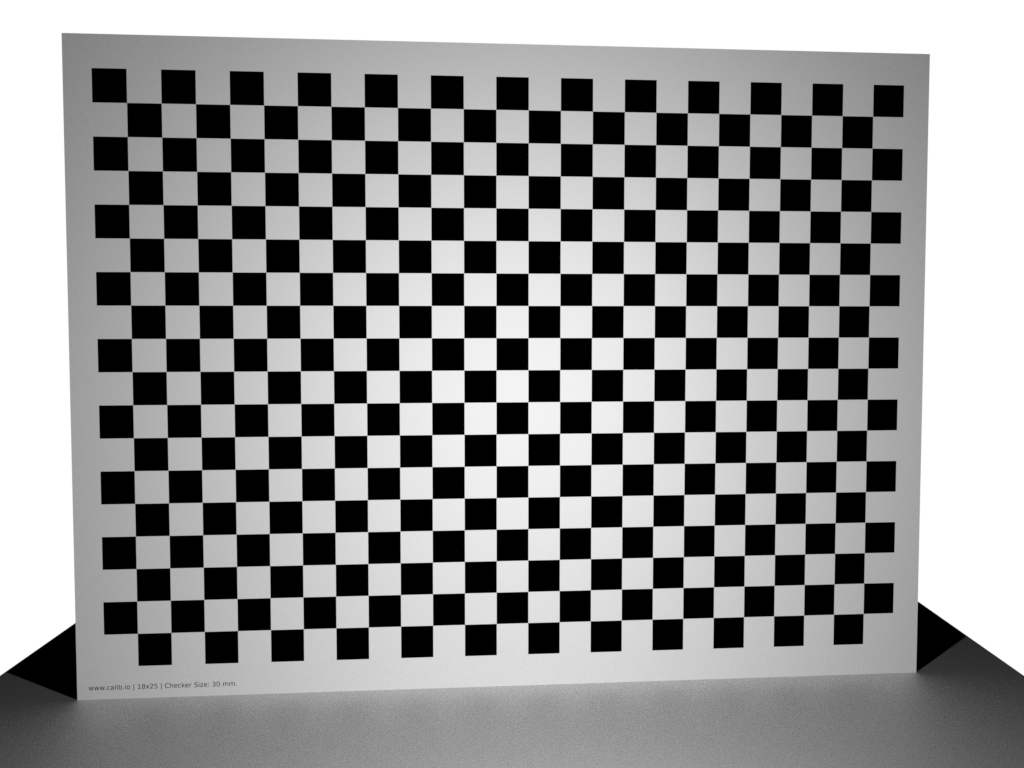

800 x 600 x 6 30 18 x 25

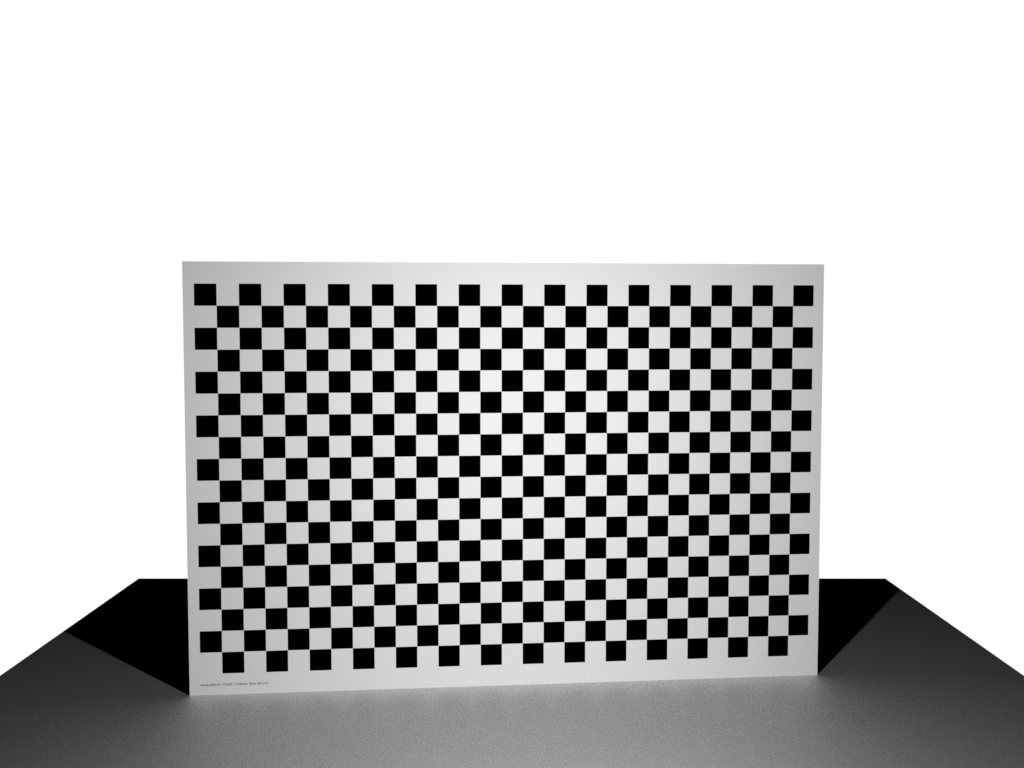

600 x 400 x 6 20 18 x 29

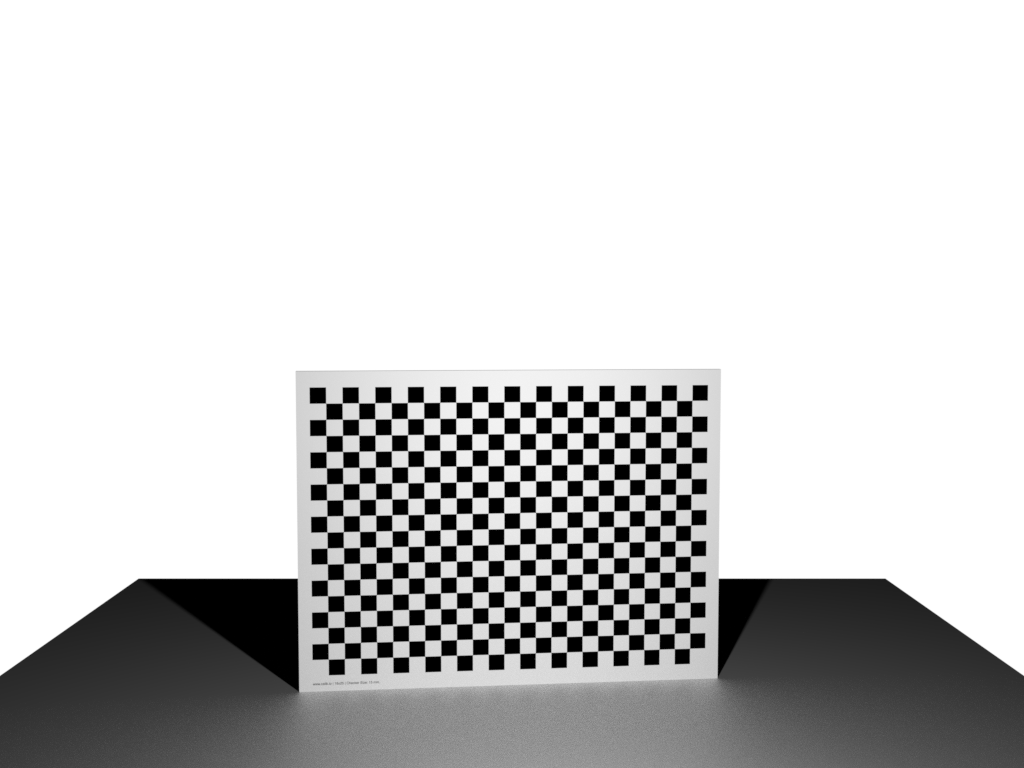

400 x 300 x 6 15 18 x 25

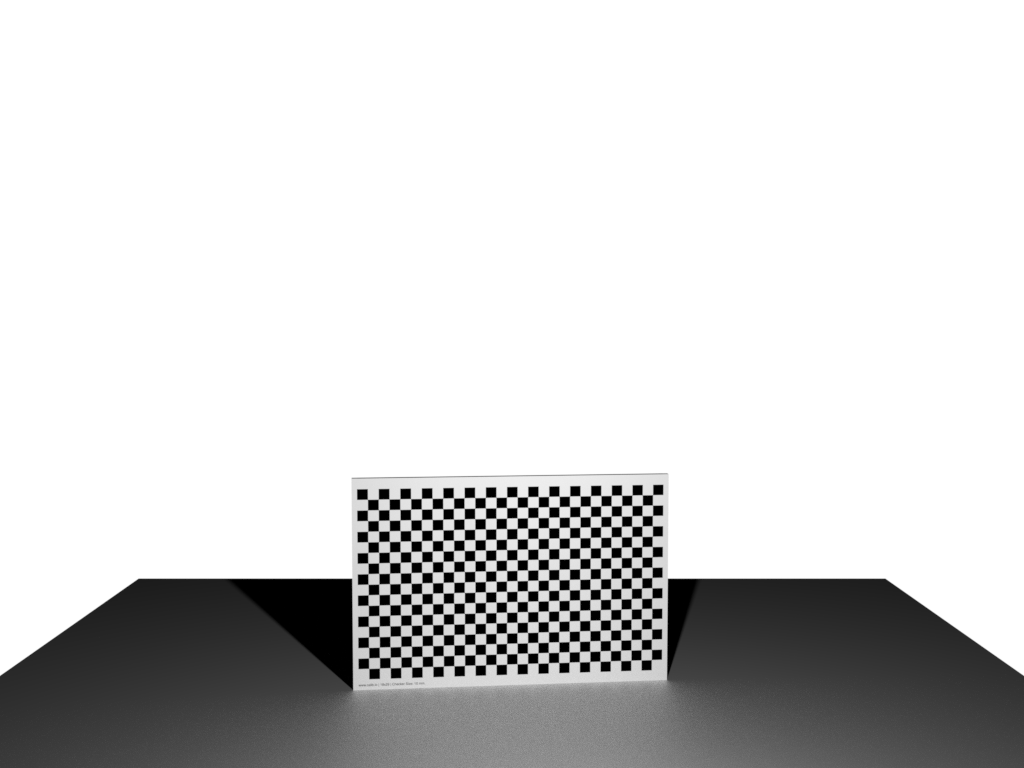

300 x 200 x 6 10 18 x 29

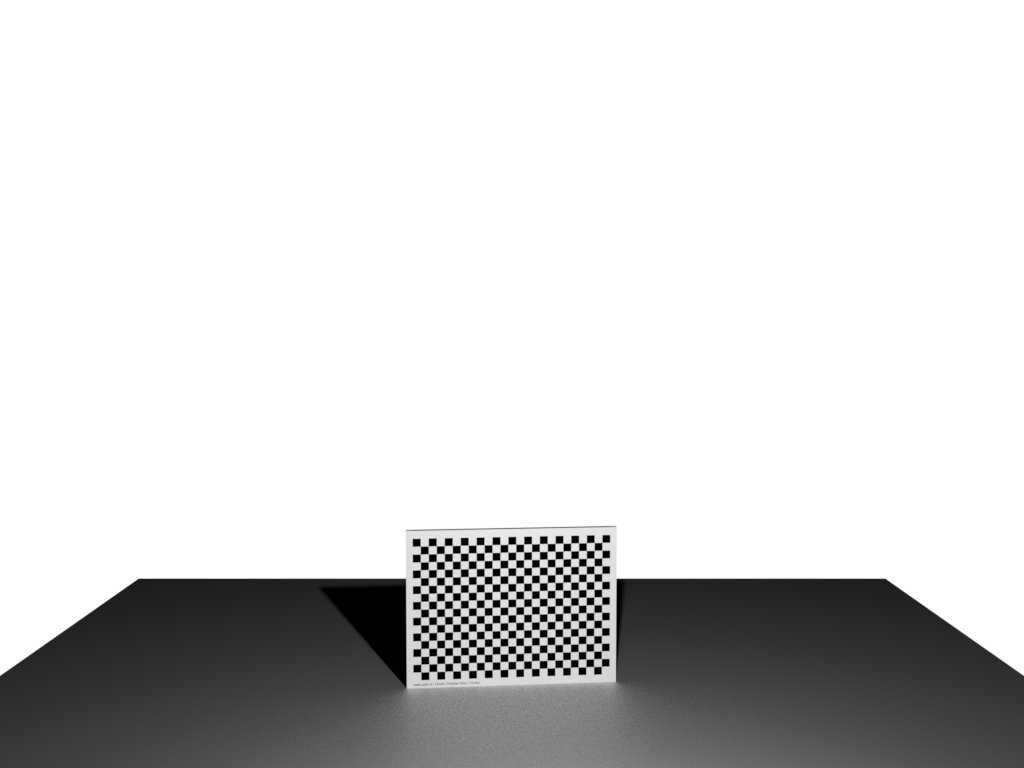

200 x 150 x 6 7.5 18 x 25



Fine (Ceramic)

Plate Size [mm] Checker Width [mm] Rows x Columns

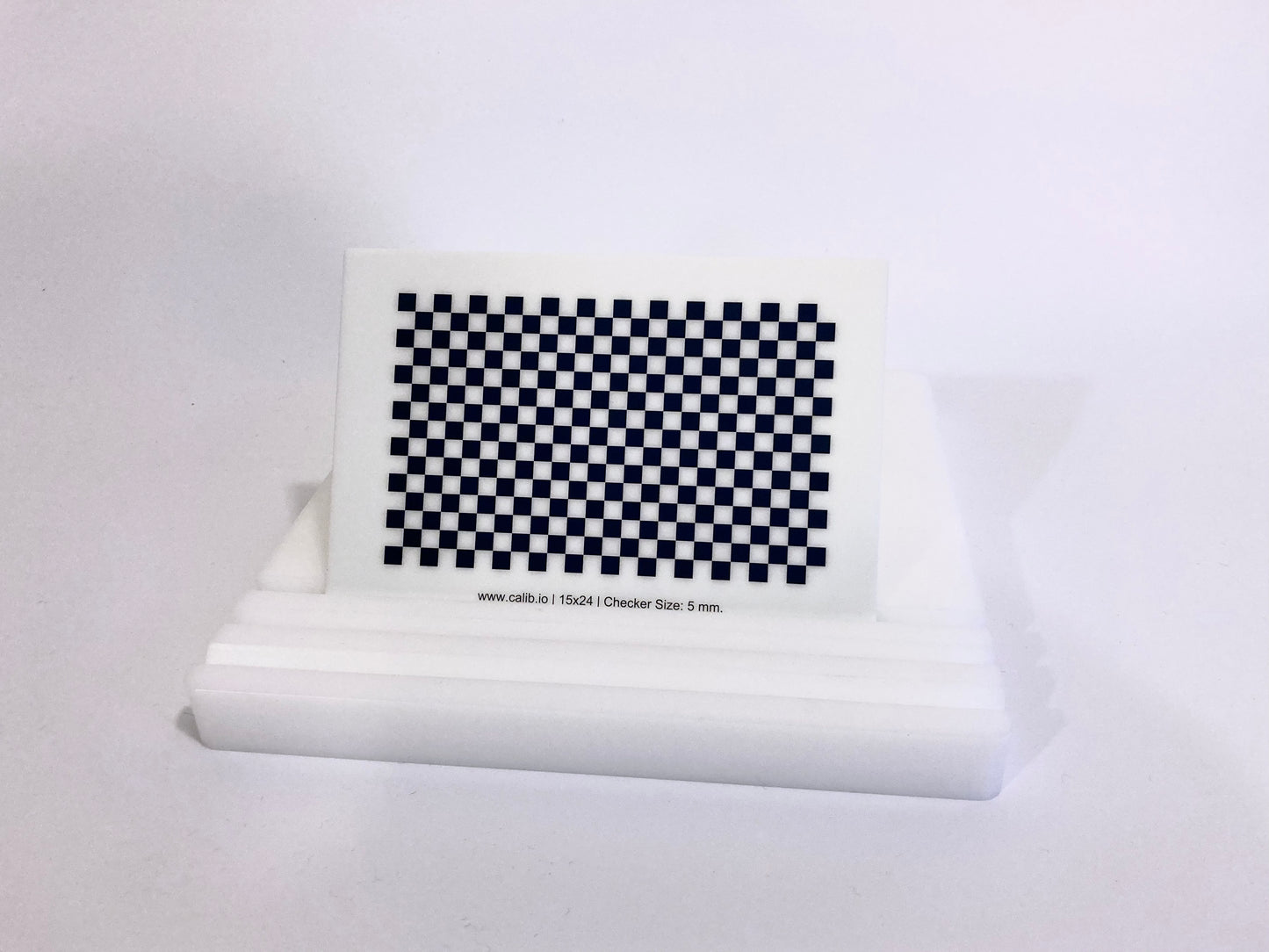

150 x 100 x 3 5 15 x 24

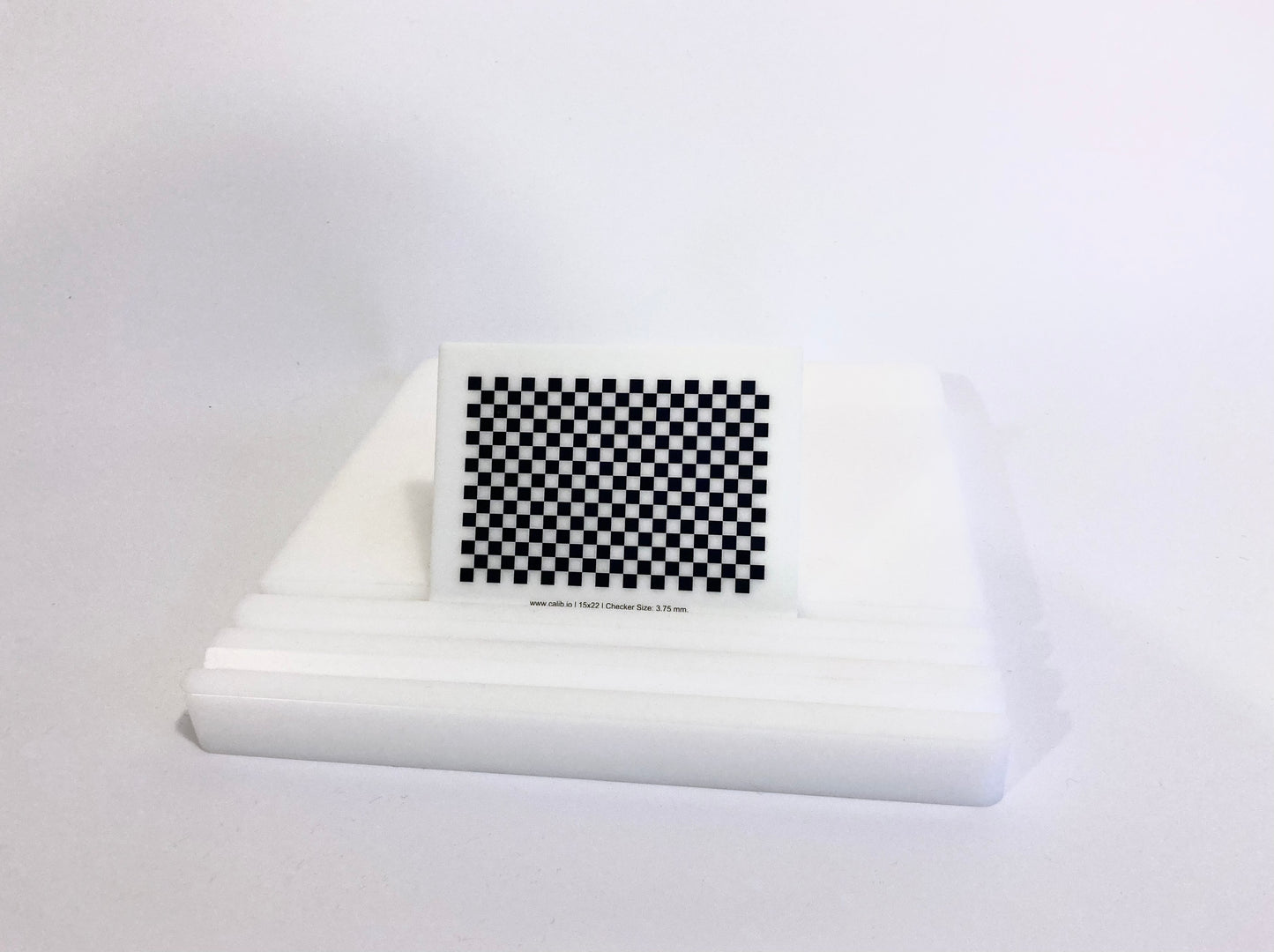

100 x 75 x 3 3.75 15 x 22
75 x 50 x 3 2.5 15 x 24



Coarse (Aluminium composite)

Plate Size [mm] Checker Width [mm] Rows x Columns

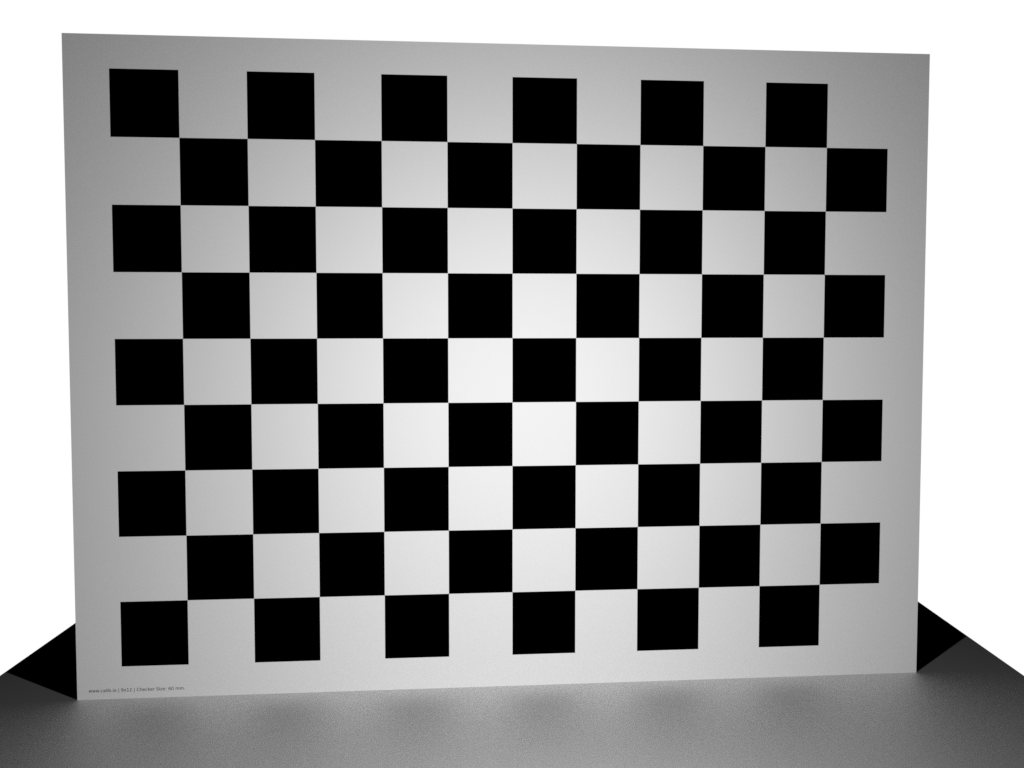

800 x 600 x 6 60 9 x 12

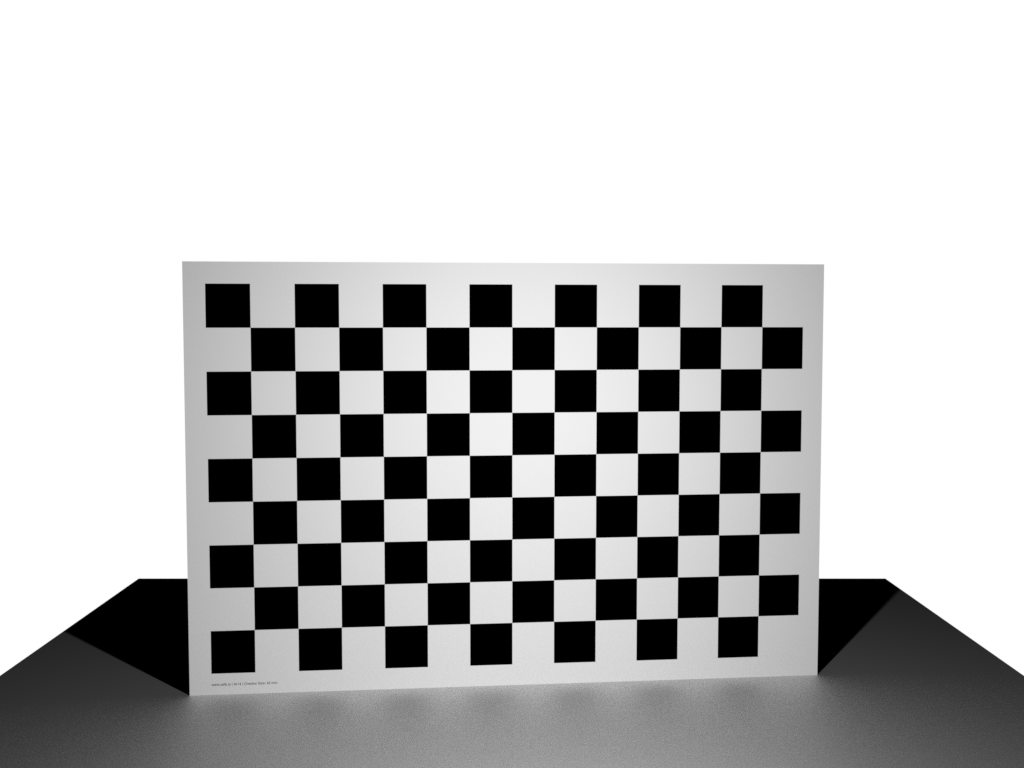

600 x 400 x 6 40 9 x 14

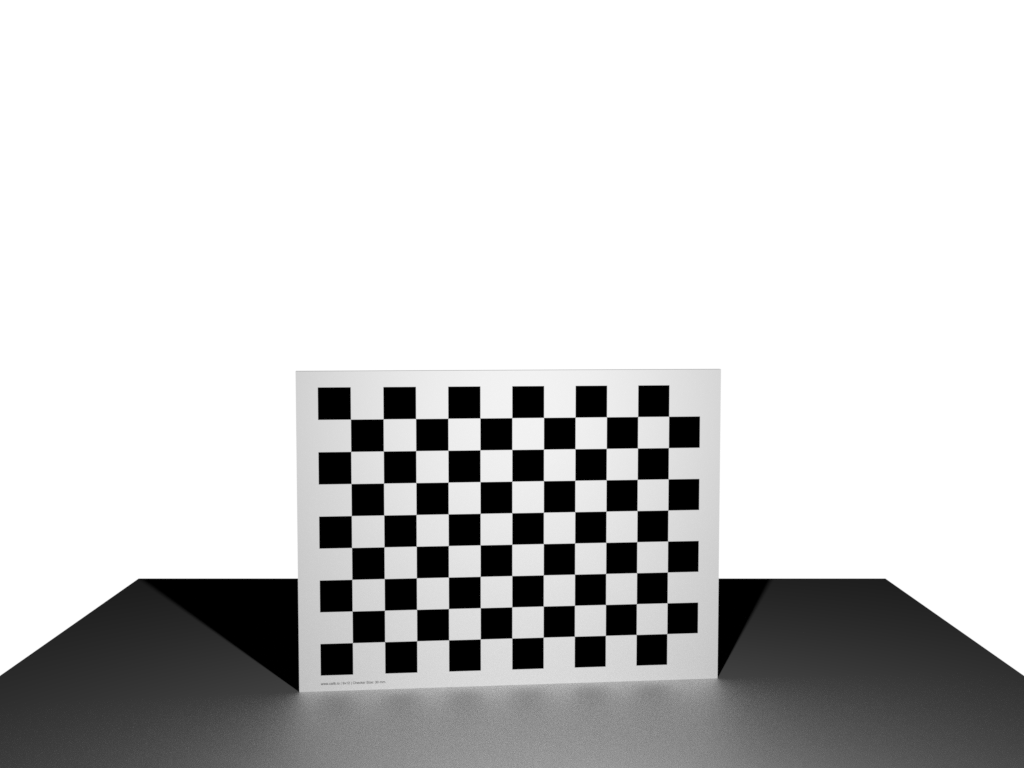

400 x 300 x 6 30 9 x 12
300 x 200 x 6 20 9 x 14
200 x 150 x 6 15 9 x 12



Aluminium Composite Technical Specifications

Weight 6.6 kg/m²
Outdoor Lifetime up to 3 years
Temperature Resistance -50 °C to + 80 °C  [-58 °F to +176 °F]
Specified temperature 20 °C (ISO 1:2016)
Linear thermal expansion ~24 μm /(°C · m)
Rigidity E·J

3840 kNcm2/m



Ceramics Technical Specifications

Temperature Resistance -50 °C to + 200 °C  [-58 °F to +392 °F]
Specified temperature 20 °C (ISO 1:2016)
Linear thermal expansion ~7.2 μm /(°C · m)
