Precision Manufactured
All of our calibration targets are made from aluminium/LDPE composite sheets which offers excellent flatness and stiffness, while being lightweight. Additionally, the composite material offers good thermal stability and corrosion resistance.
The substrate is carefully machined to size and fitted with 6mm corner radiuses to maximize robustness. The patterns are transferred to the composite material using a specialised precision direct UV (Ultra-Violet) printing process resulting in a durable matte finish. Through extensive testing, we have found this process to be ideal for machine vision applications, where both accuracy, good optical performance and physical robustness are of utmost importance.
To mount or position these targets on tripod, frames or fixtures, see Accessories.
For further information, please refer to the aluminium composite datasheet.
Sizes
The following sizes are available:
| Size [mm] |
Size [inches] |
| 800 x 600 x 6 |
31.496 x 23.622 x 0.236 |
| 600 x 400 x 6 |
23.622 x 15.748 x 0.236 |
| 400 x 300 x 6 |
15.748 x 11.811 x 0.236
|
| 300 x 200 x 6 |
11.811 x 7.874 x 0.236
|
| 200 x 150 x 6 |
7.874 x 5.905 x 0.236
|

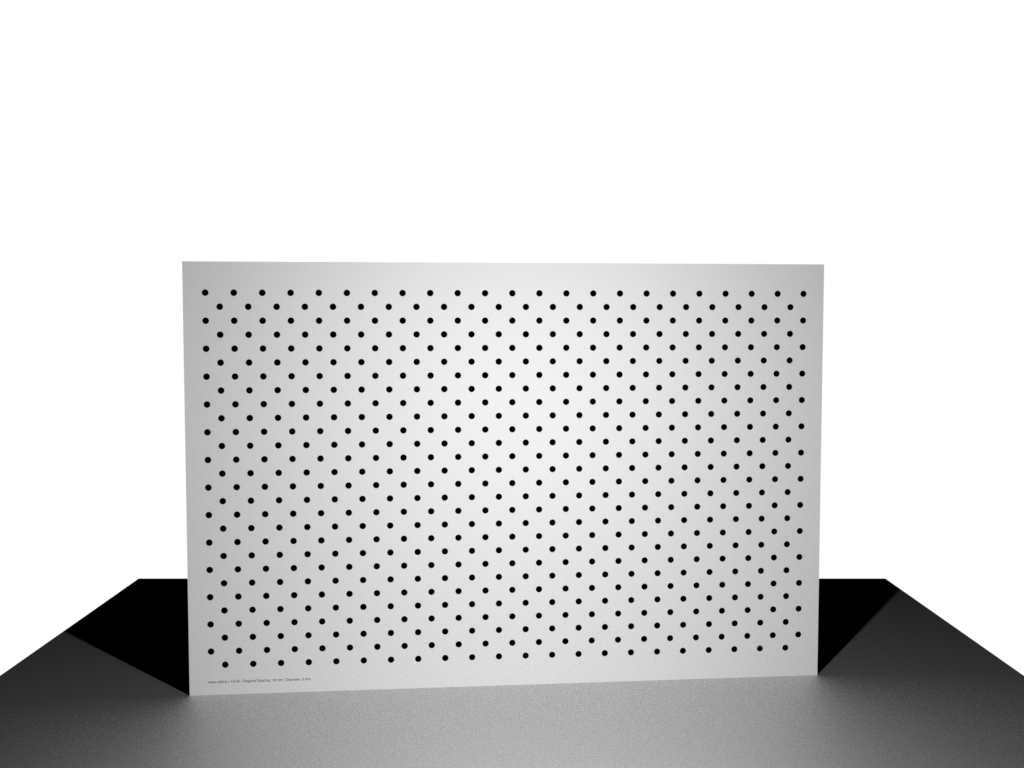

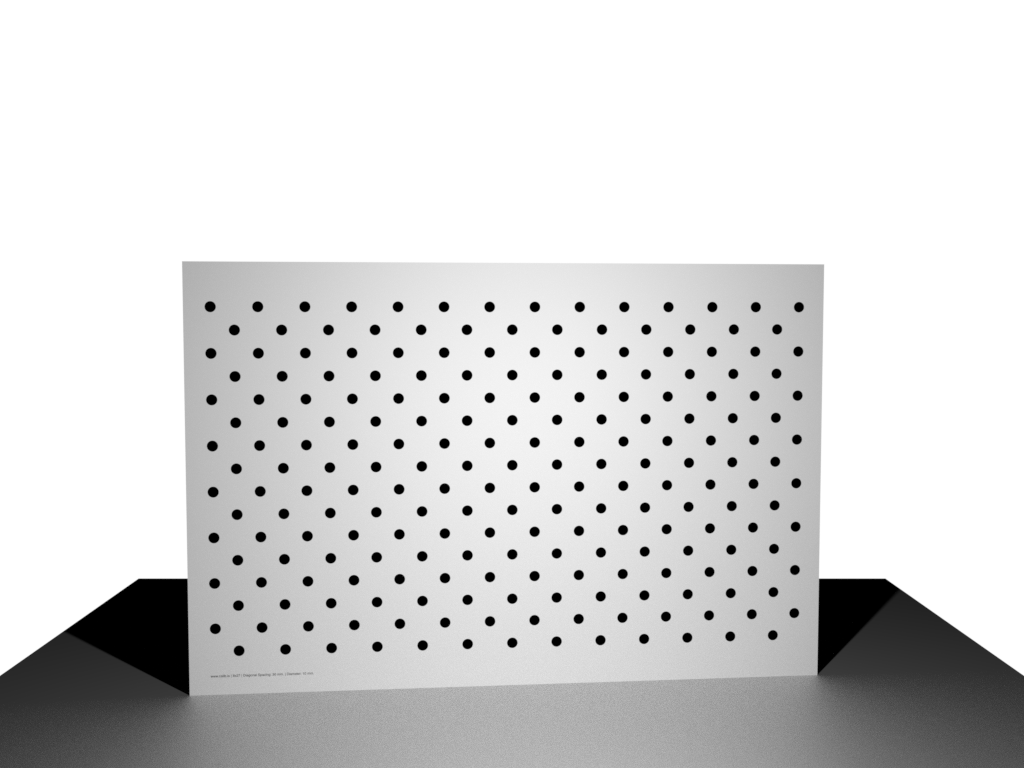

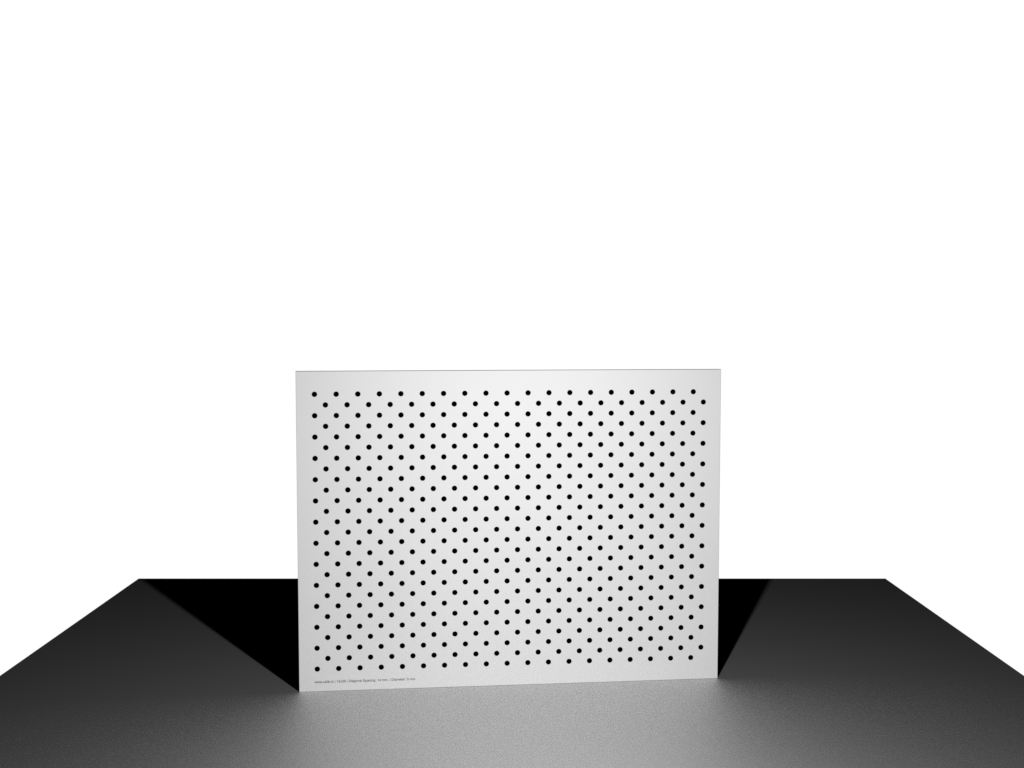

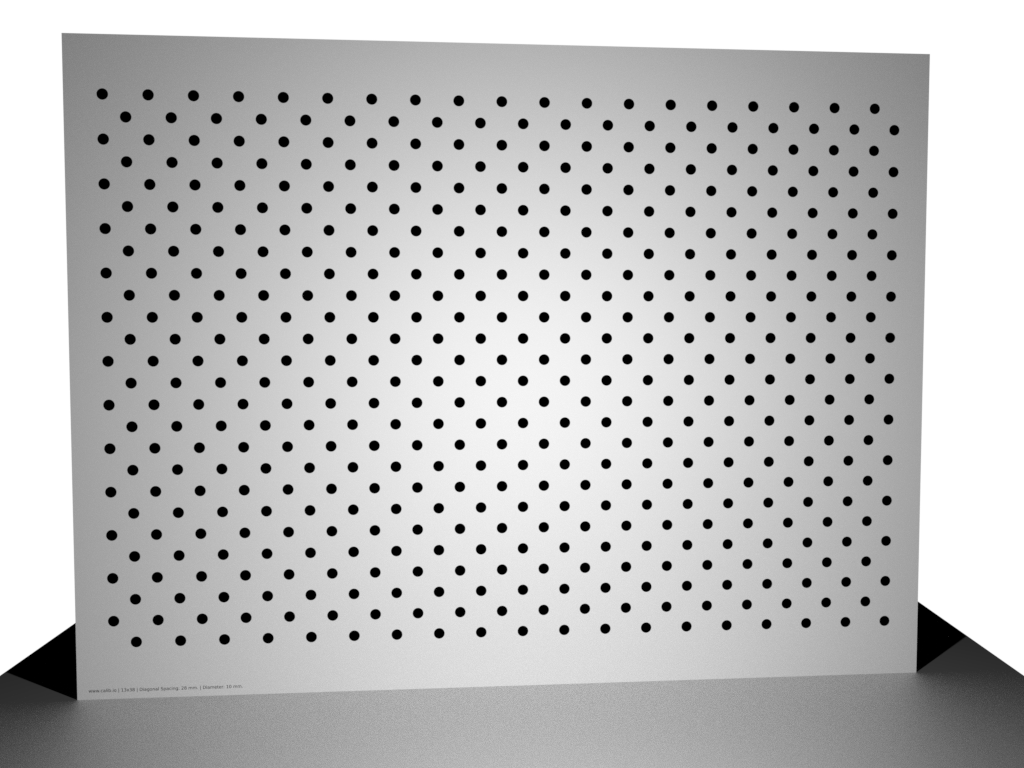

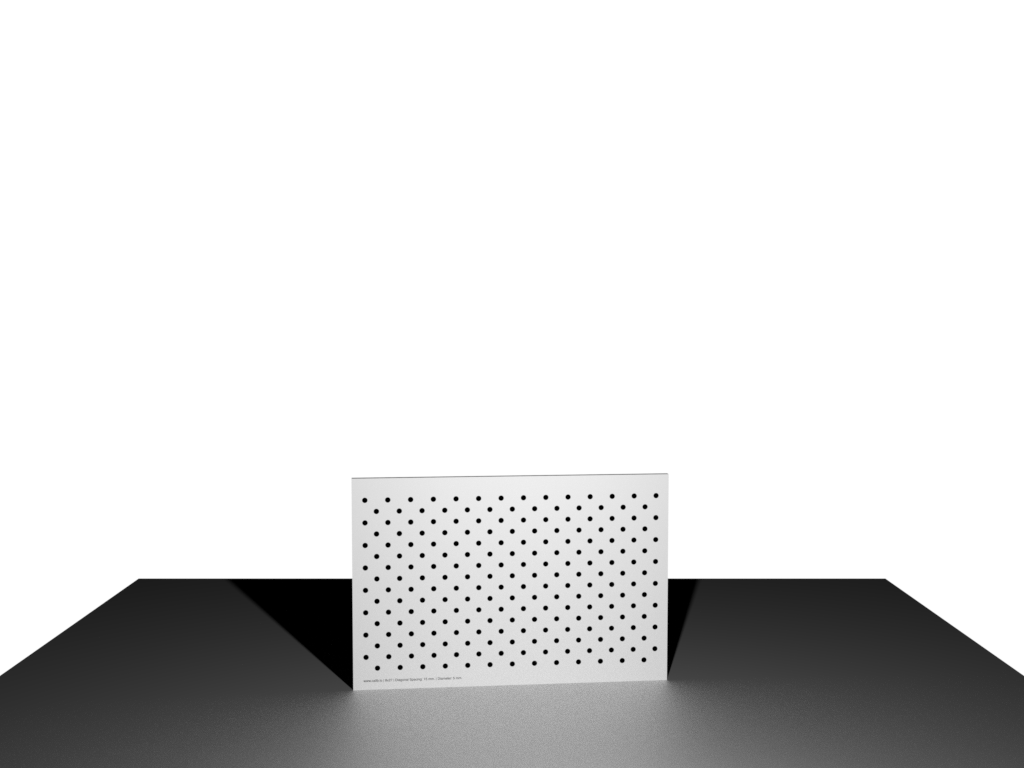

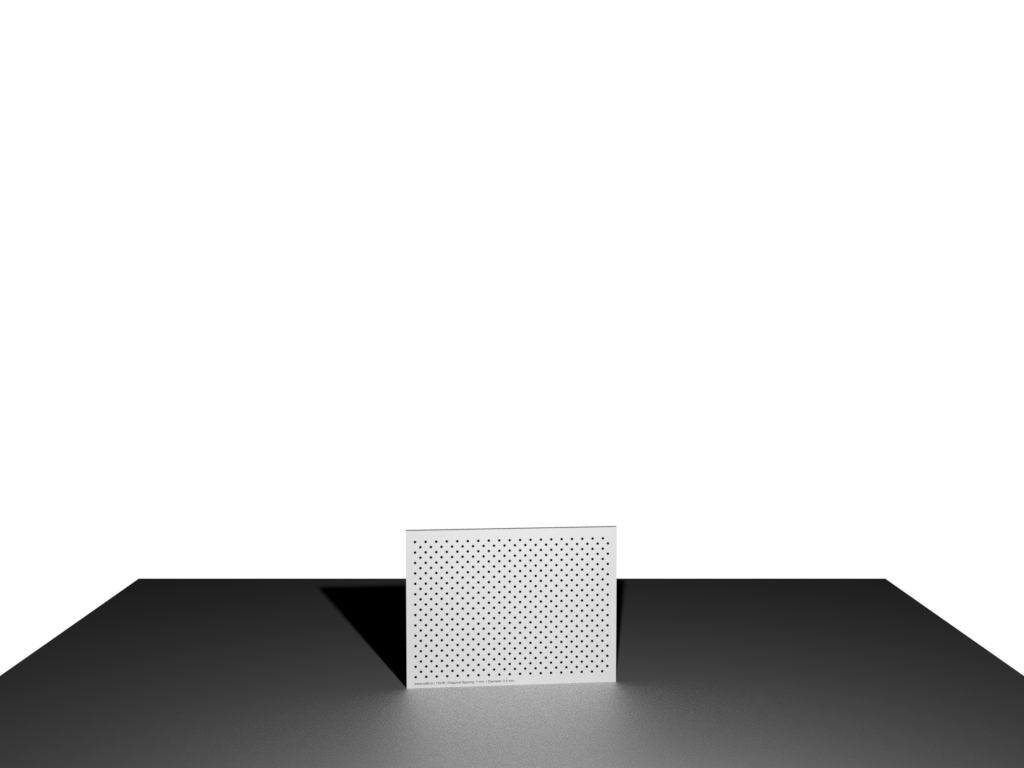

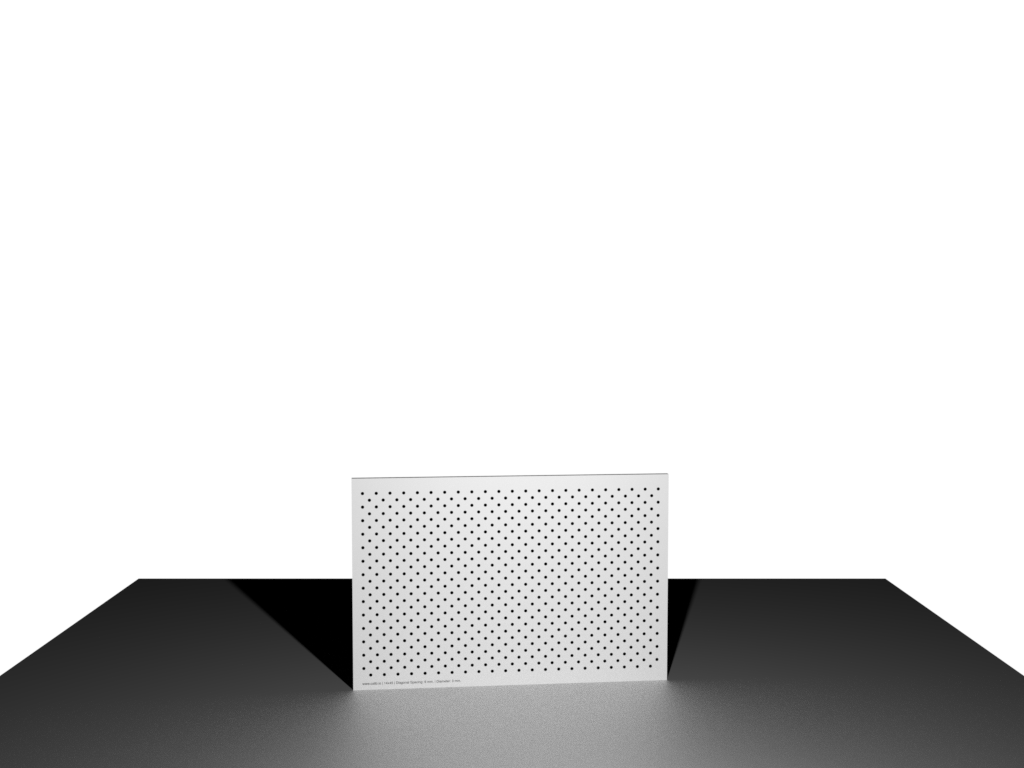

Patterns
We offer two pattern options, Fine and Coarse, which have been specifically designed to work optimally with high (Fine) and low (Coarse) resolution cameras. The following tables illustrate the available options:
Fine
| Plate Size [mm] |
Diameter [mm] |
Spacing (Diag.) [mm] |
Rows x Columns |
| 800 x 600 x 6 |
10 |
28 |
19 x 27 |
| 600 x 400 x 6 |
6 |
18 |
14 x 45 |
| 400 x 300 x 6 |
5 |
14 |
19 x 27 |
| 300 x 200 x 6 |
3 |
9 |
14 x 45 |
| 200 x 150 x 6 |
3 |
7 |
19 x 27 |
Coarse
| Plate Size [mm] |
Diameter [mm] |
Spacing (Diag.) [mm] |
Rows x Columns |
| 800 x 600 x 6 |
14 |
44 |
8 x 23 |
| 600 x 400 x 6 |
10 |
30 |
8 x 27 |
| 400 x 300 x 6 |
7 |
22 |
8 x 23 |
| 300 x 200 x 6 |
5 |
15 |
8 x 27 |
| 200 x 150 x 6 |
3.5 |
11 |
8 x 23 |
Technical Specifications
| Weight |
6.6 kg/m² |
| Outdoor Lifetime |
up to 3 years |
| Temperature Resistance |
-50 °C to + 80 °C [-58 °F to +176 °F] |
| Specified temperature |
20 °C (ISO 1:2016)
|
| Linear thermal expansion |
~24 μm /(°C · m) |
| Rigidity E·J |
3840 kNcm2/m
|
