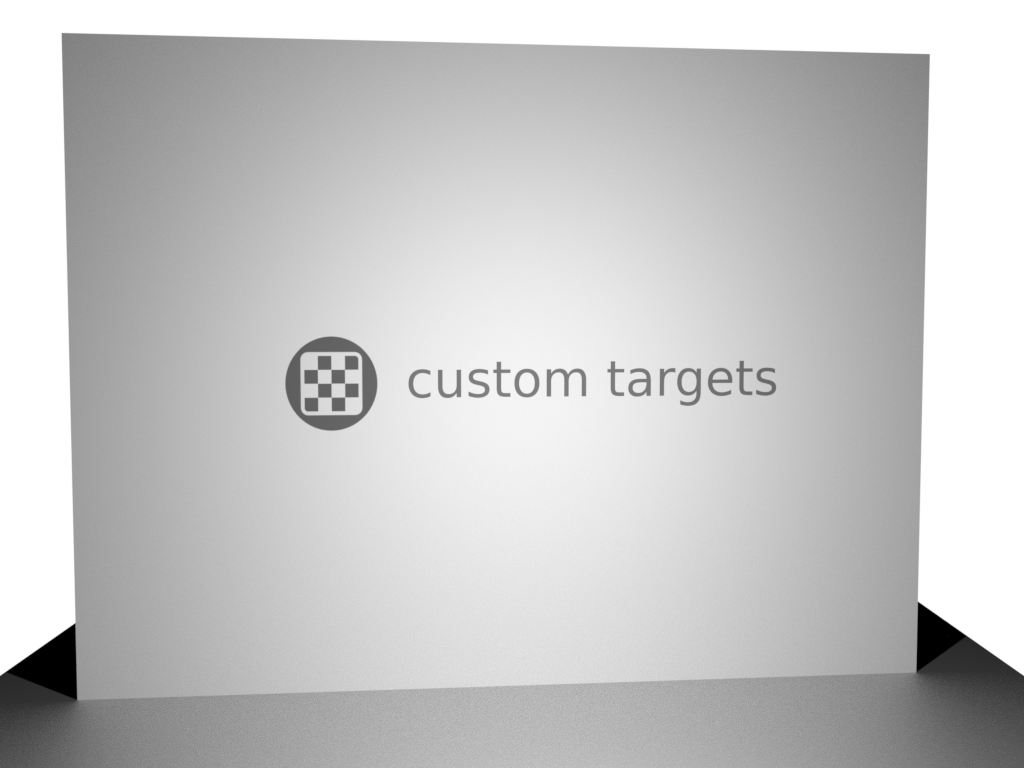

Custom Targets

Regular price €159,00 Sale

Precision Manufactured

This products lets you order custom pattern configurations on our standard aluminium/LDPE substrate. This material offers excellent flatness and stiffness, while being lightweight. Additionally, the composite material offers good thermal stability and corrosion resistance.

The patterns are transferred to the composite material using a specialised precision direct UV (Ultra-Violet) printing process resulting in a durable matte finish. Through extensive testing, we have found this process to offer a very good trade off between rigidity, accuracy and cost for machine vision applications, where both accuracy, good optical performance and physical robustness are of important.

To mount or position these targets on tripod, frames or fixtures, see Accessories.

 For very high accuracy targets and more customization options, please submit a quote request.

Sizes

There are four available sizes:

Size [mm] Size [inches]
800 x 600 x 6 31.496 x 23.622 x 0.236
600 x 400 x 6 23.622 x 15.748 x 0.236
400 x 300 x 6 15.748 x 11.811 x 0.236
300 x 200 x 6 11.811 x 7.874 x 0.236
200 x 150 x 6 7.874 x 5.905 x 0.236

Technical Specifications

Weight 6.6 kg/m²
Outdoor Lifetime up to 3 years
Temperature Resistance -50 °C to + 80 °C  [-58 °F to +176 °F]
Specified temperature 20 °C (ISO 1:2016)
Linear thermal expansion ~24 μm /(°C · m)
Rigidity E·J 3840 kNcm2/m
